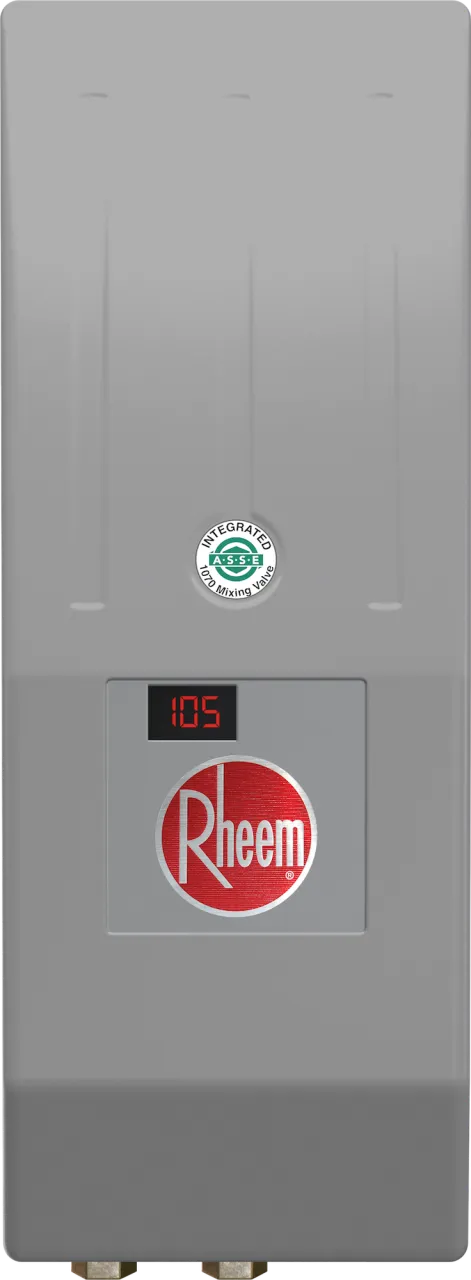

Thermostatic Tankless Electric Water Heater
MODEL RTEH004277MV
5-Year limited warranty on leaks,
1-year on parts
- Self-diagnostics with intelligent controls actively protect heater in installed environment
- SafeStart™ technology engages upon start-up to help avoid dry-fire occurrence
- Industry leading low flow activation at 0.2 GPM
Select GPM
3
GPM
SKU RTEH004277MV
Model Thermostatic Handwashing with Mixing Valve
Depth 4"
Height 14.5"
Width 5.25"
Kilowatts 4.1
Amps 15
Voltage 277
RecommendedWireSize 14 AWG
GPMTurnOn 0.3
MinOpPsi 35
Max Pressure Rating 150
Phase 1
Color 1
Cover Material ABS-UL 94-5VA
Element Type Replaceable cartridge - bare wire
Element Material Ni Chrome
Npt Or Compression Compression
- Digital LED display with accessible user interface communicates system status and heater operation feedback
- Silent operation on all models except for RTEH012240T
- Mounts in any orientation for a flexible installation
- Compact size fits almost anywhere; suitable for ADA compliant facilities
- Only one input line, hot or cold, needed for an easy installation
- Designed to deliver hot water to a single pipe faucet, mixing valves or mixing faucets
- Integral 3/8" compression fittings; no soldering or sweat connections required
- No T&P relief valve needed (check local codes); Ready to go, right out-of-the-box
- Save water and time by installing unit at the point-of-use
- Control system activates heater only on demand
- High temperature limit switch enables safe operation
- Active energy management with power modulation allows for thermostatic accuracy
5-Year limited warranty on leaks,
1-year on parts
