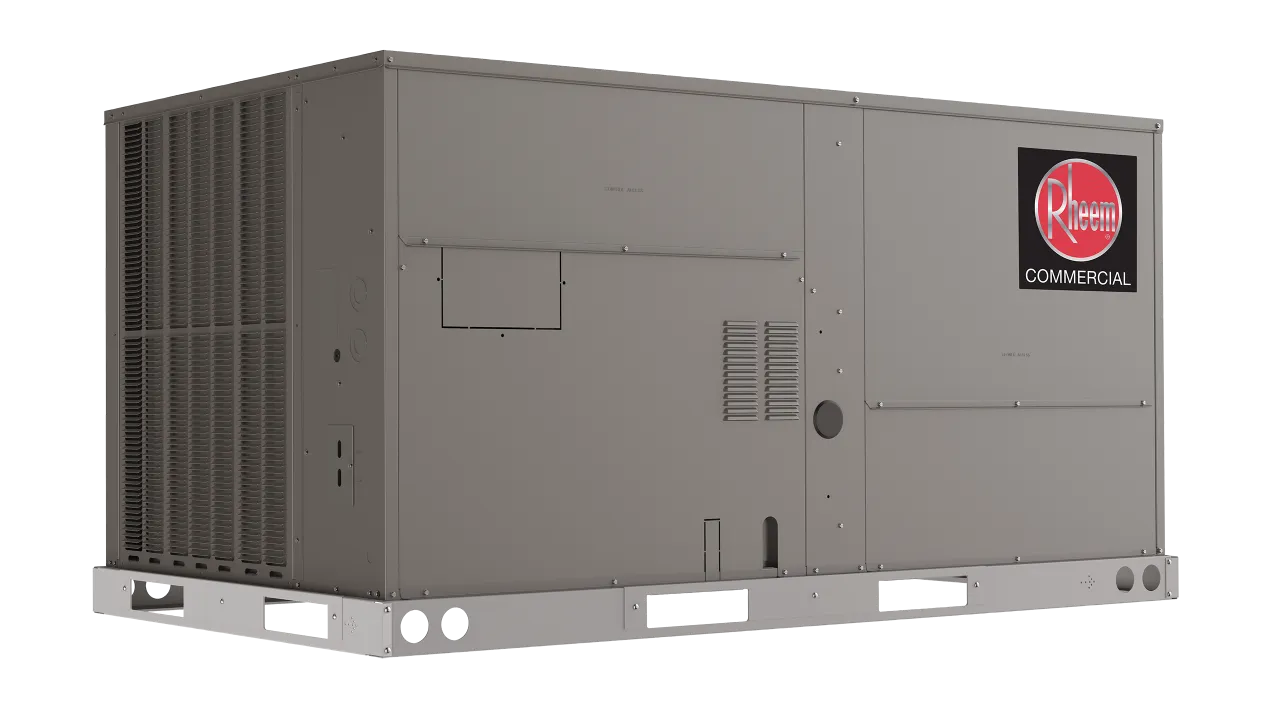

RHPCZR/RHPCZT Commercial Renaissance Line Package Heat Pump (3-6 Ton)
MODEL RHPCZR048ADT000AAAA0
Compressor
Commercial Applications - Five (5) Years
Parts
Commercial Applications - One (1) Year
- RHPCZR - Single Stage Cooling (3, 4 & 5 Ton)
- RHPCZT - Two Stage Cooling (6 Ton)
- PlusOne® Diagnostics with Dual 7-Segment LED Display
- PlusOne® ServiceSmart package
Select Tonnage
3
Tons
4
Tons
5
Tons
6
Tons
Models
SKU RHPCZR048ADT000AAAA0
Warranty Years 1
Model RHPCZR/RHPCZT (3-6 Ton)
Tonnage 4 Tons
Depth 77.88"
Height 41.38"
Width 44.63"
Nominal Capacity in BTU/h 48000 BTU/h
Min Tonnage 3 Tons
Max Tonnage 6 Tons
- Factory charged with R-410A HFC refrigerant
- Wired and run tested
- Scroll compressors with internal line break overload and high pressure protection
- Convertible airflow – vertical down flow or horizontal sideflow
- Forkable base rails for easy handling and lifting
- Cooling operation up to 125°F ambient
- MicroChannel evaporator and condenser coil
- PlusOne® ServiceSmart package includes: Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, &Qwik-Clean Drain Pan
- Over-flow condensate sensor
- PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance
- One-piece top cover and base pan with drawn supply and return opening
- Two-piece control door
- 1/4 turn fasteners on filter access door
- Color-coded and labeled wiring
- External lockable gauge ports
- TXV refrigerant metering system
- Solid-core liquid line filter drier
- High pressure and low pressure/loss of charge protection with built-in Smart Logic
- Insulation encapsulated throughout entire unit
- New product footprint with matching connections
- Improved factory lead times
Compressor
Commercial Applications - Five (5) Years
Parts
Commercial Applications - One (1) Year
