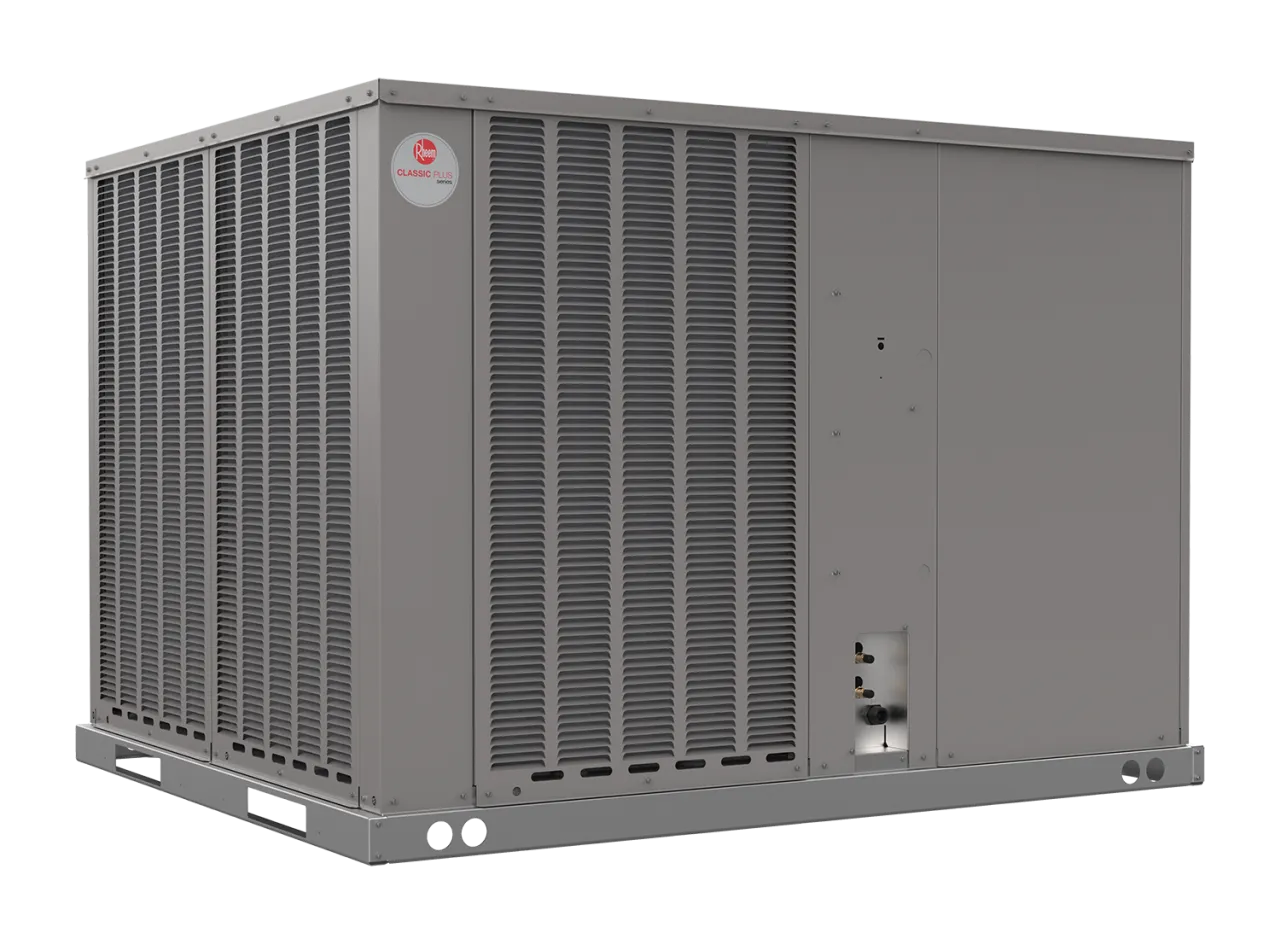

RACA/XZS Endeavor Line Packaged Air Conditioner

• The Two-Stage Compressor modulates between two capacity settings – 67% and 100% – providing more precise temperature control, lower humidity and greater efficiency in comparison to single stage compressors. It uses 70% fewer moving parts which also increases efficiency and reliability.
• Louvered condenser compartment to protect the coil against yard hazards and/or weather extremes.
• One-piece top with a drip flange to help keep water out of the unit.
• Drawn supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork.
•  Access panels have “weep holes” and channels to further help manage water run-off.
• All models are shipped ready for horizontal application.
• Easily accessible blower section complete with slide-out blower.
• Refrigerant connections are conveniently located for easy service diagnostics.
• Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface.
• Supplemental electric heat strips up to 15 kW are available (field installed) for periods of extreme cold temperatures. Single point wiring simplifies installation.
• Easily accessible control box.
• Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions.
• Solid core liquid line. Filter drier standard on all models (not shown).
• Rugged baserail included for improved installation and handling.
• Molded compressor plug.
• Complete factory charged, wired and run tested.
• A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality.

Conditional Parts (Registration Required) 1 Phase, Residential Applications...................Ten (10) Years

Compressor 1 Phase, Residential Applications...................Ten (10) Years

1 & 3 Phase, Commercial Applications............Five (5) Years

Parts 1 & 3 Phase, Commercial Applications.............One (1) Year
