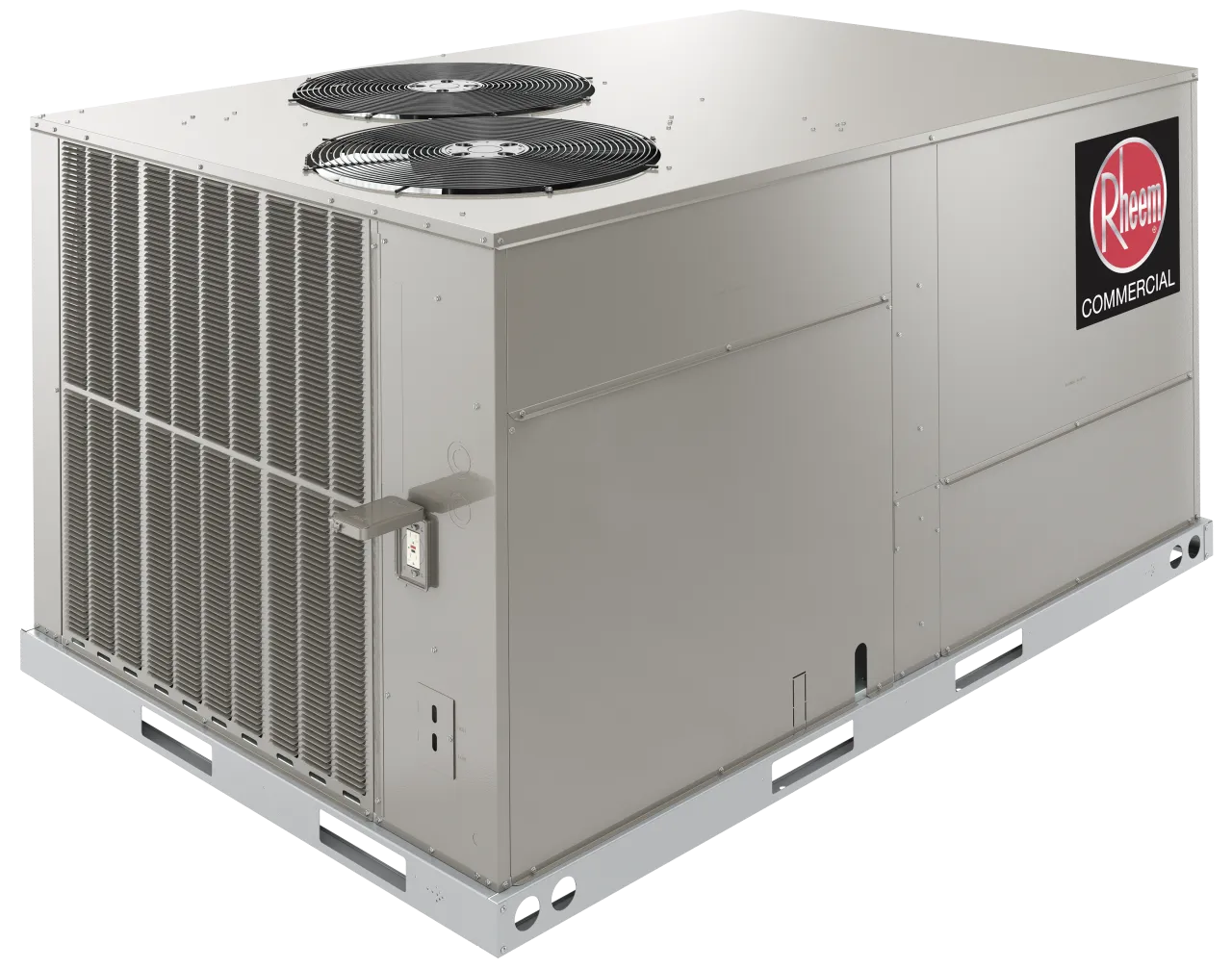

Prestige^® Series: RHPDZT (7.5, 8.5 & 10)

• PlusOne^® ServiceSmart package includes: Qwik-Change Flex-Fit Rack^™, Qwik-Slide Blower Assembly^™, Qwik-Clean Drain Pan^™
• Overflow condensate sensor

• PlusOne^® Diagnostics with Dual 7-Segment LED Display to meet code compliance
• Two-stage compressor
• Variable Frequency Drive (VFD) blower is standard on Model RHPDZT and optional on model RHPDZS
• Factory charged with R410A HFC refrigerant
• Wired and run tested
• Scroll compressors with internal line break overload and high pressure protection
• Convertible airflow - vertical down flow or horizontal side flow
• Single-point electrical connections
• Forkable base rails for easy handling and lifting
• Cooling operation up to 125°F ambient
• MicroChannel evaporator and condenser coil
• One-piece top cover and one-piece base pan with drawn supply and return opening
• Two-piece control door
• 1/4 turn fasteners on filter access door
• Color-coded and labeled wiring
• External lockable gauge ports
• TXV refrigerant metering system
• Solid-core liquid line filter drier
• High pressure and low pressure/loss of charge protection with built-in Smart Logic
• Insulation encapsulated throughout entire unit
• High performance belt drive motor with variable pitch pulleys and quick adjust belt system
• New product footprint with matching connections
• Improved factory lead times

Compressor: Five (5) Years - Commercial Applications

Parts: One (1) Year - Commercial Applications
